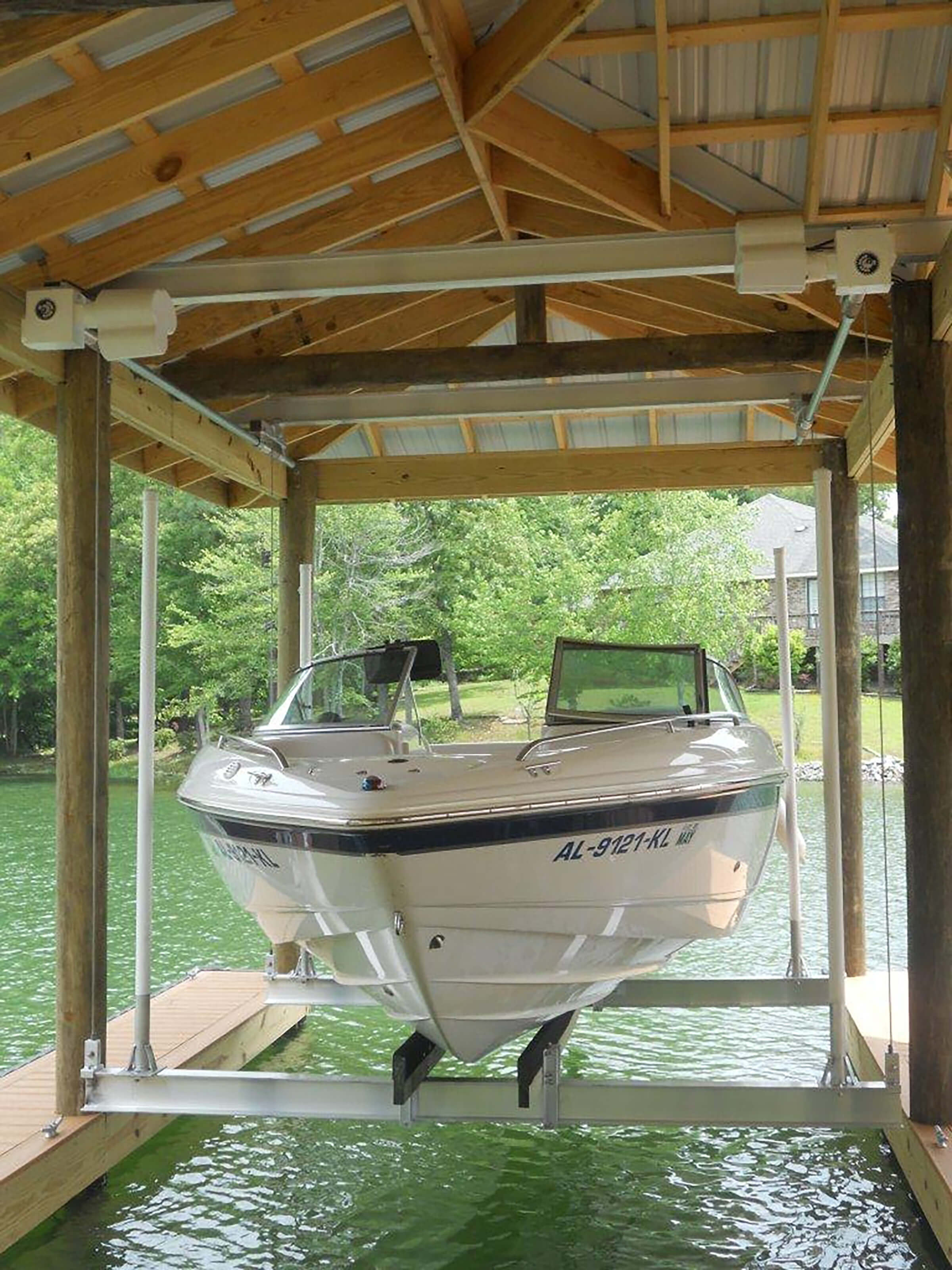

Boat House Lift

Presenting the Boat House Lift, powered by our patented Hi-Tide Gear Drive and specifically designed to be mounted onto your boat house structure.

View Specifications
Contact Us
Quick Links
Options & Accessories
Warranty
Structural & Wire Specifications
Gallery

Standard Features

  1. Patented, sealed aluminum Hi-Tide Gear Drive gear box provides efficient, quiet and fast performance
  2. Fully adjustable design allowing Top Beams and Lifter Beams to be field cut for that perfect customized fit
  3. All-aluminum structure using 6061-T6 marine-grade aluminum
  4. Slide-on pulleys and dead-man brackets
  5. Welded construction throughout
  6. Stainless steel electric motors – made in America
  7. Machined aluminum cable winders that extend cable and driveshaft life
  8. Aluminum pulleys with greaseable stainless steel axle bolts
Scroll

Options & Accessories.

  • Center shaft
  • Top beam side pockets
  • Aluminum bunks
  • Remote control
  • Limit switch
  • Aluminum service platform
  • Aluminum catwalk
  • Additional options and accessories available

Warranty

  • 10  year  structural  warranty
  • 5  year  gear box  warranty
  • 2  year  motor  warranty
  • 1  year  comprehensive  warranty

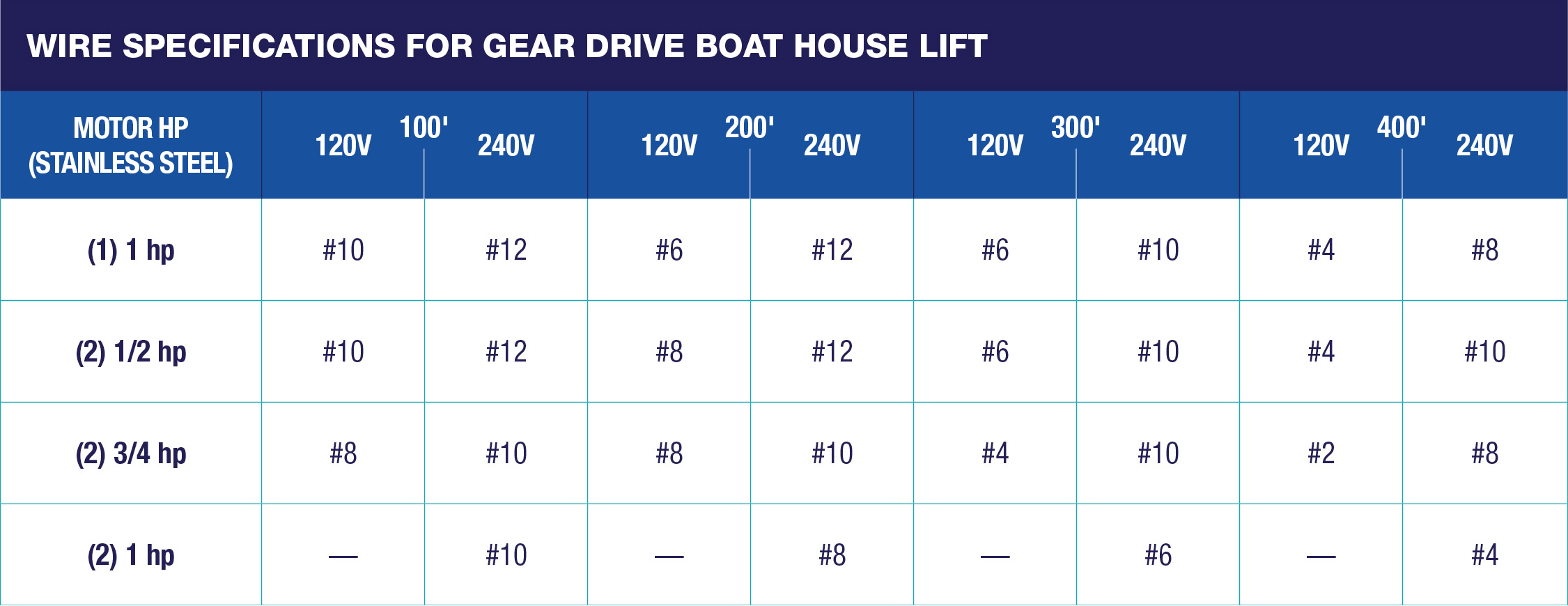

Structural & Wire Specifications

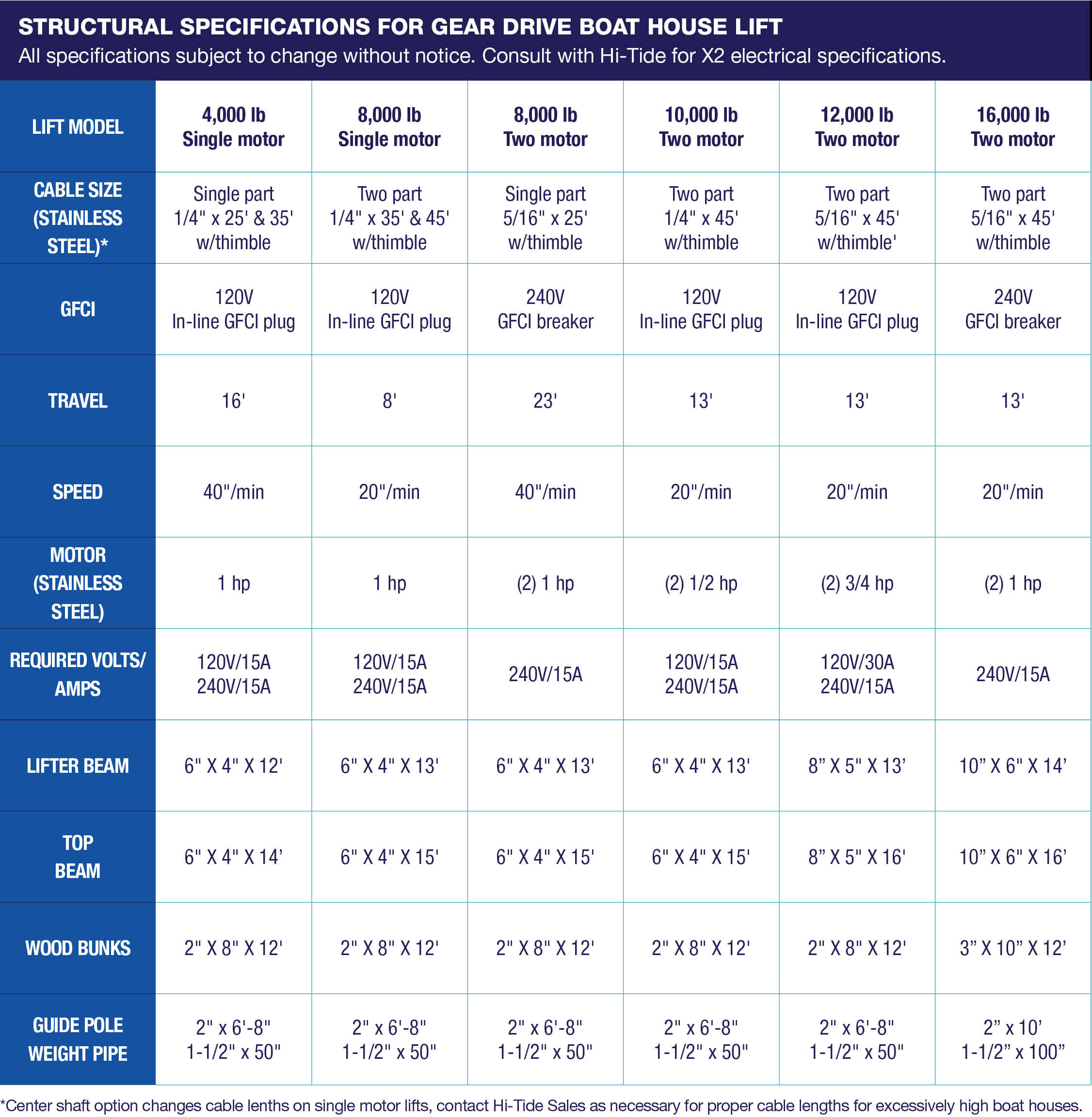

Specifications for Gear Drive Boat House Lift

Click below to view the specifications for Hi-Tide Boat House Lift:

View Catalog
