Cuda Gear

Our most economical lift, the Cuda Gear is powered by our patented Hi-Tide Gear Drive.

View Specifications

Quick Links

Options & Accessories

Warranty

Structural & Wire Specifications

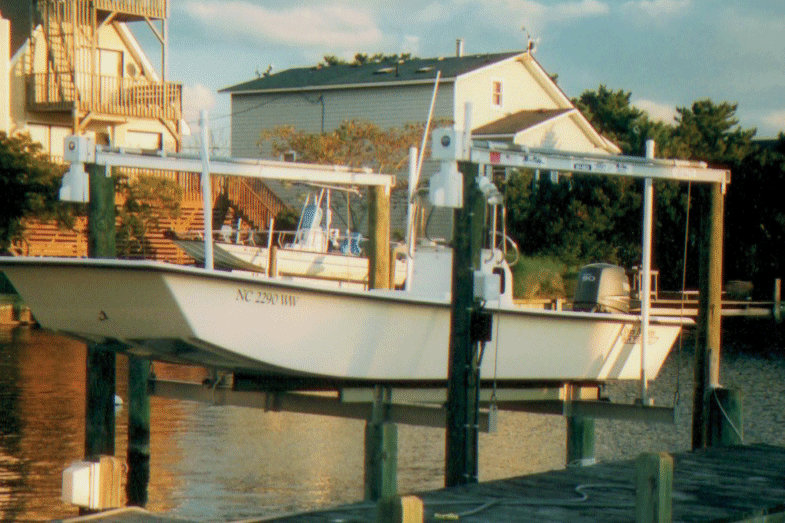

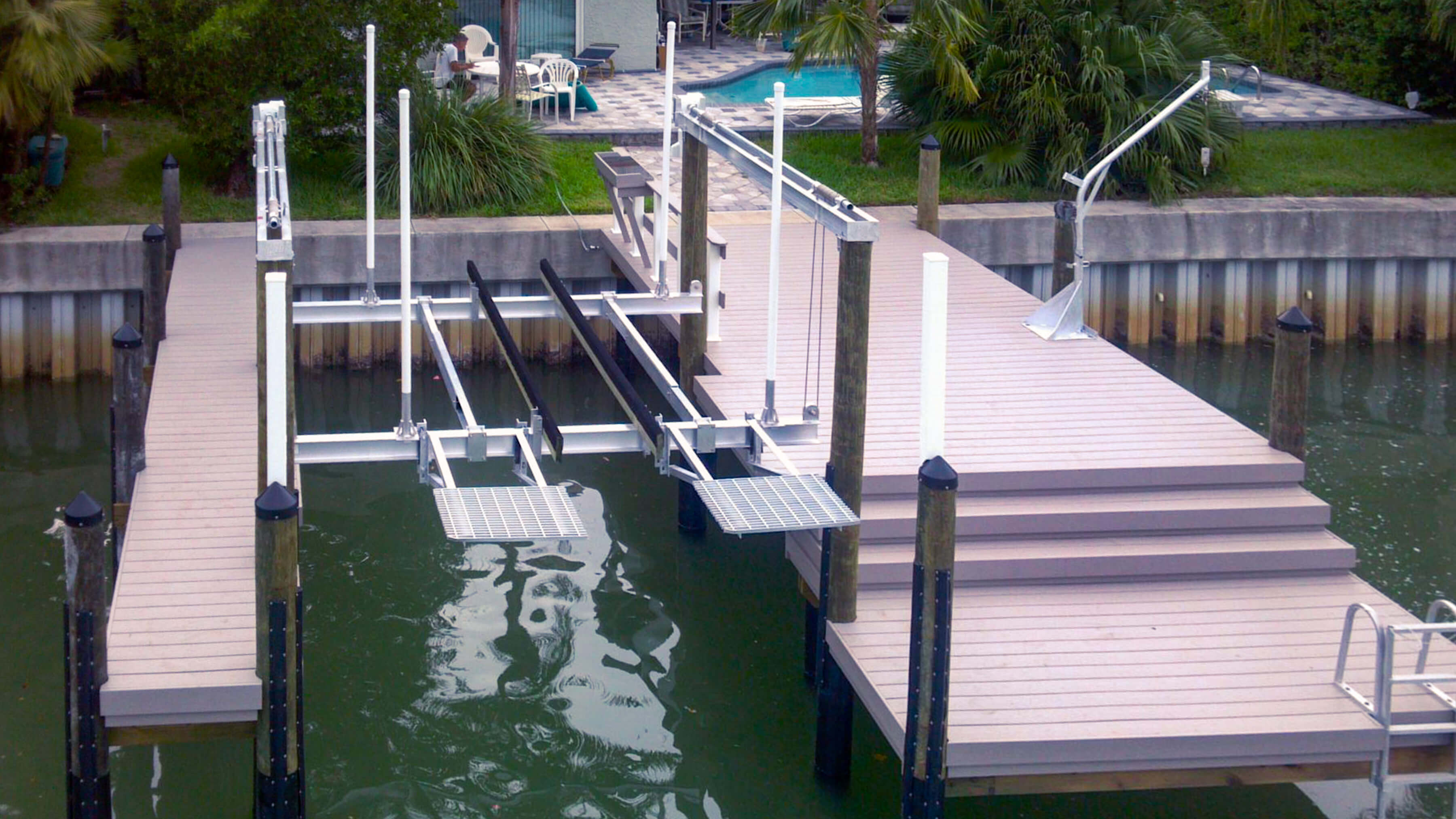

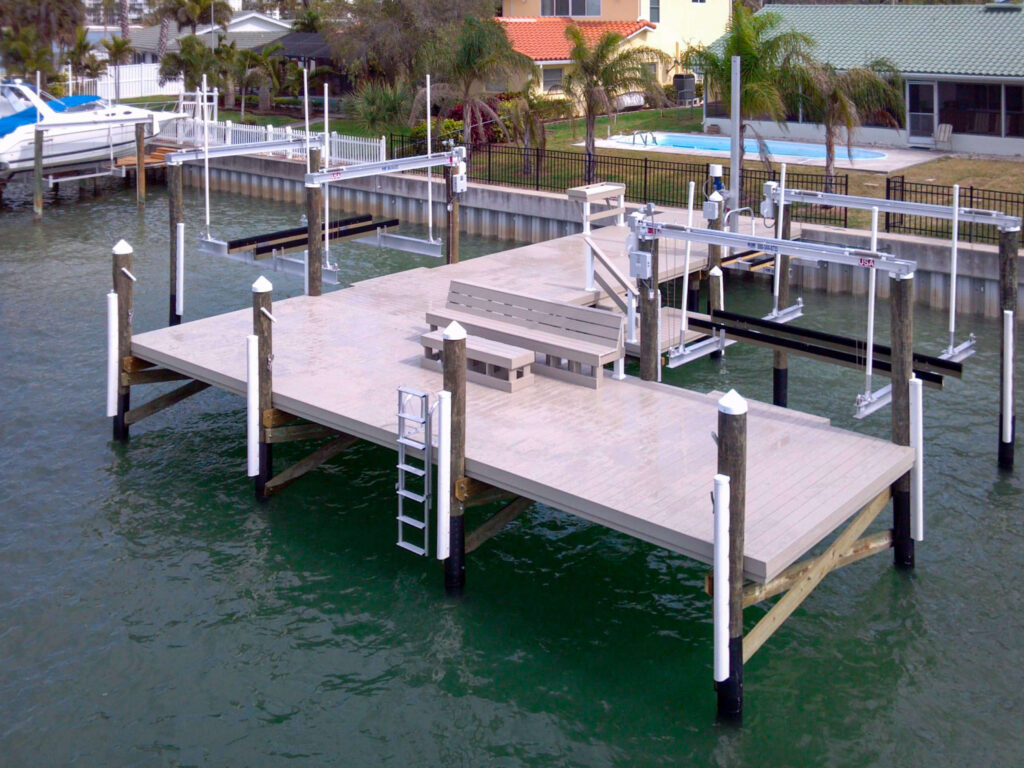

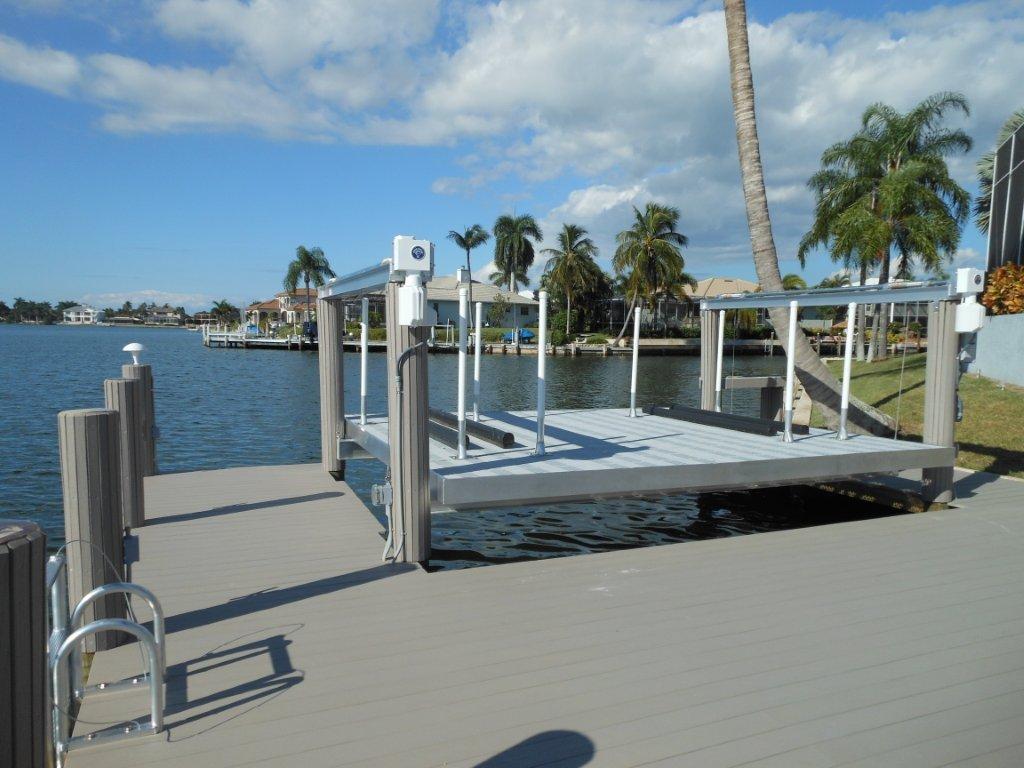

Gallery

Standard Features

Patented, sealed aluminum Hi-Tide Gear Drive gear box provides efficient, quiet and fast performance
Riches Switches with lockable, weather-resistant enclosure
All-aluminum structure using 6061-T6 marine-grade aluminum
Aluminum twin C-channel top carriers
Welded construction throughout
Stainless steel electric motors – made in America
Machined aluminum cable winders that extend cable and driveshaft life
Aluminum pulleys with greaseable stainless steel axle bolts

Scroll

Options & Accessories.

Aluminum catwalk
Aluminum bunks
Boathouse brackets
Driveshaft covers
Limit switch
Marina brackets
Aluminum service platform
Snap-in transparent winder covers
Remote control
Cable Keepers
Additional options and accessories available

Warranty

10 year structural warranty
5 year gear box warranty
2 year motor warranty
1 year comprehensive warranty

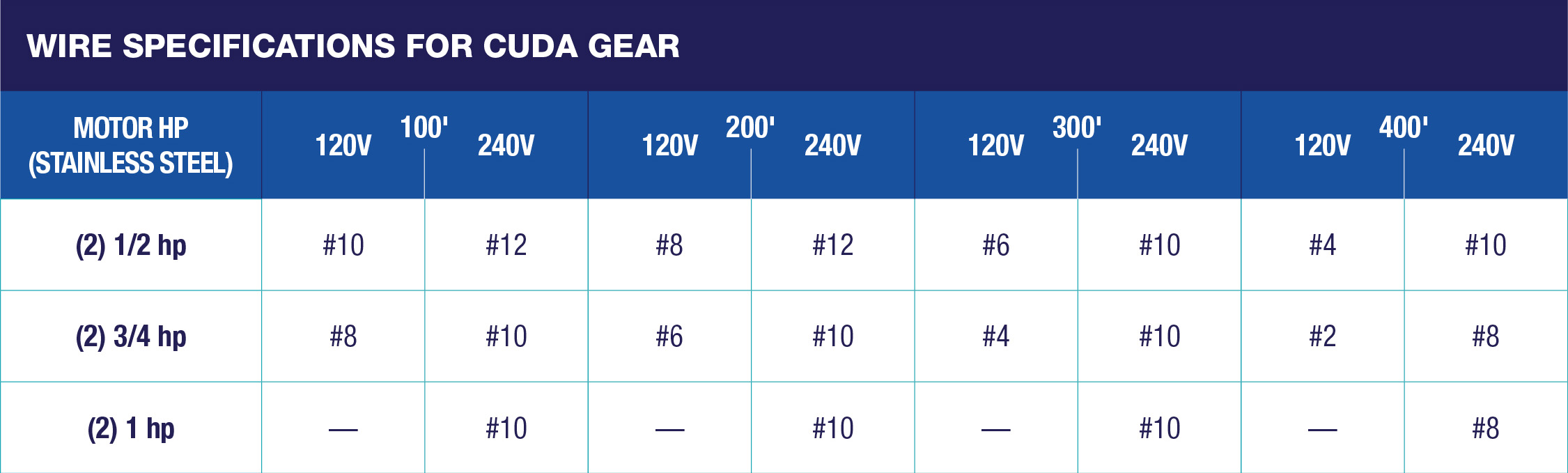

Structural & Wire Specifications

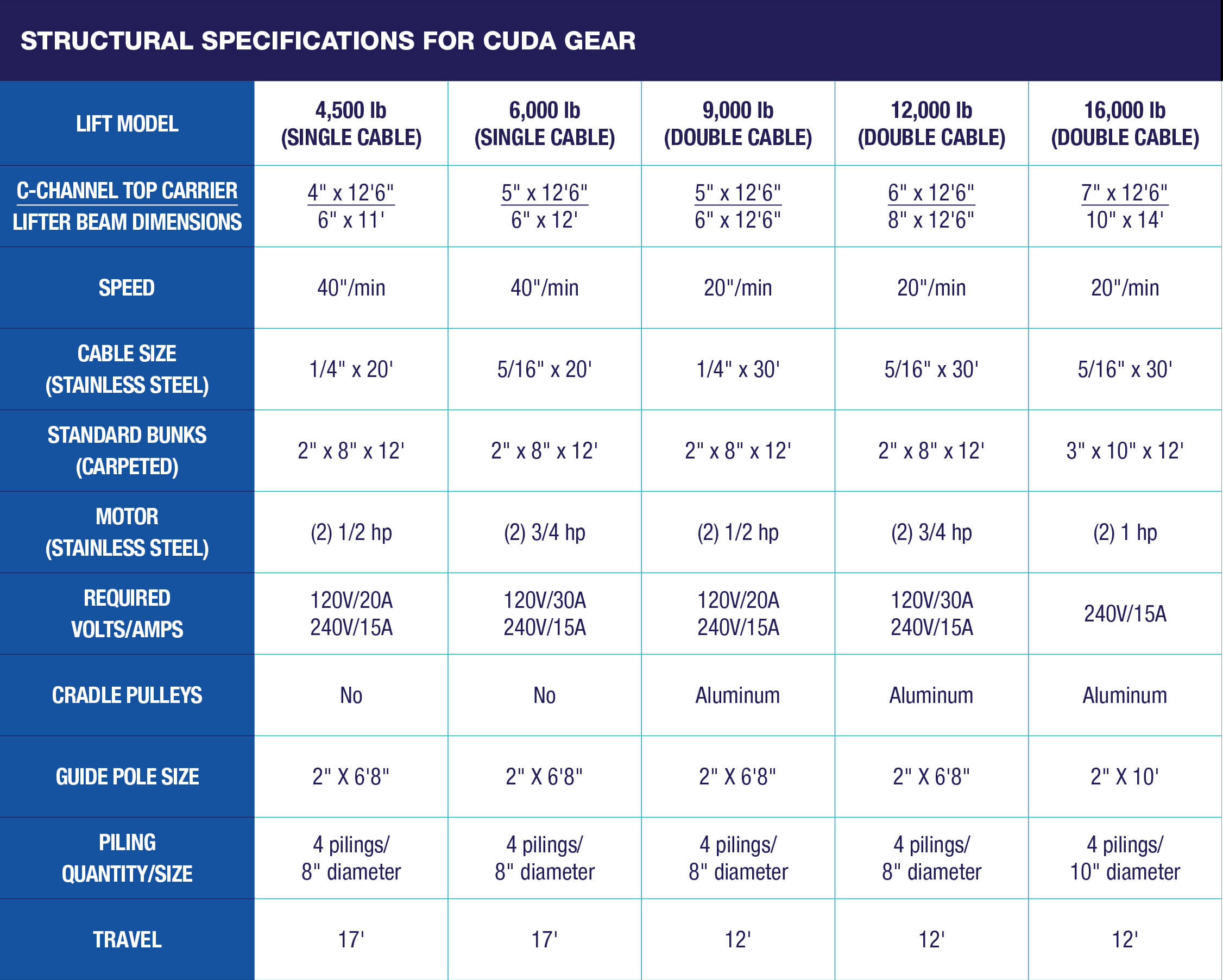

Specifications for Cuda Gear

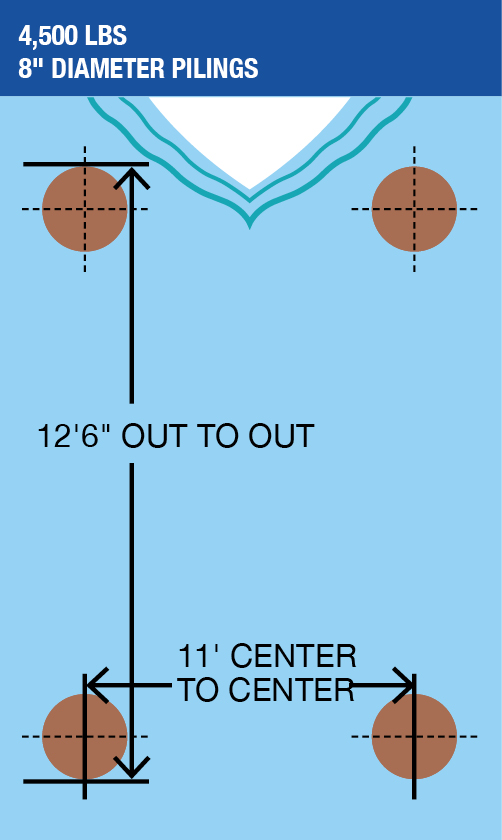

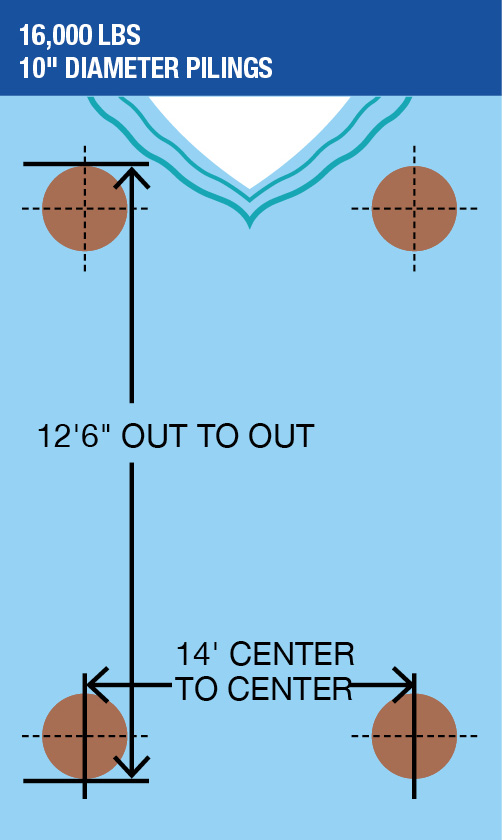

Piling Setting Dimensions for Cuda Gear

Specification Notes:

Hi-Tide Cuda Gear lifter beams are designed to lift on the centerline of the support pilings. If the dock edge overlaps centerline of the pilings, adjustment should be made to increase piling spacing side to side, shorten lifter beams, or notch deck boards to accommodate the lifter beams.

Click below to view the specifications for Hi-Tide Cuda Gear:

View Catalog
