Galvanized PWL

The Galvanized PWL is another option for storing your smaller vessel, using galvanized steel with back-up electrolysis prevention for proven strength and durability and the Hi-Tide Gear Drive system for power and efficiency.

View Specifications
Contact Us
Quick Links
Options & Accessories
Warranty
Structural & Wire Specifications
Gallery

Standard Features

  1. Patented, sealed aluminum Hi-Tide Gear Drive
  2. Galvanized PWL constructed with hot- dipped galvanized steel for strength and durability in a freshwater environment
  3. Stainless steel electric motors – made in America
  4. Carpeted wood bunks
  5. Piling mount
  6. Stainless steel cables and hardware
  7. Machined aluminum cable winder that extend cable life
  8. Salt water protection kit
Scroll

Options & Accessories.

  • Remote control
  • Limit switch
  • Aluminum catwalk
  • Extended forks (reduces capacity - 1,500 & 3,000 lbs only)
  • Extra bunks and guide poles
  • Complete Disconnect Switch (Strongly Recommended)
  • Seawall mount
  • Custom designs available for multiple personal watercrafts

Warranty

  • 3  year  structural  warranty
  • 5  year  gear box  warranty
  • 2  year  motor  warranty
  • 1  year  comprehensive  warranty

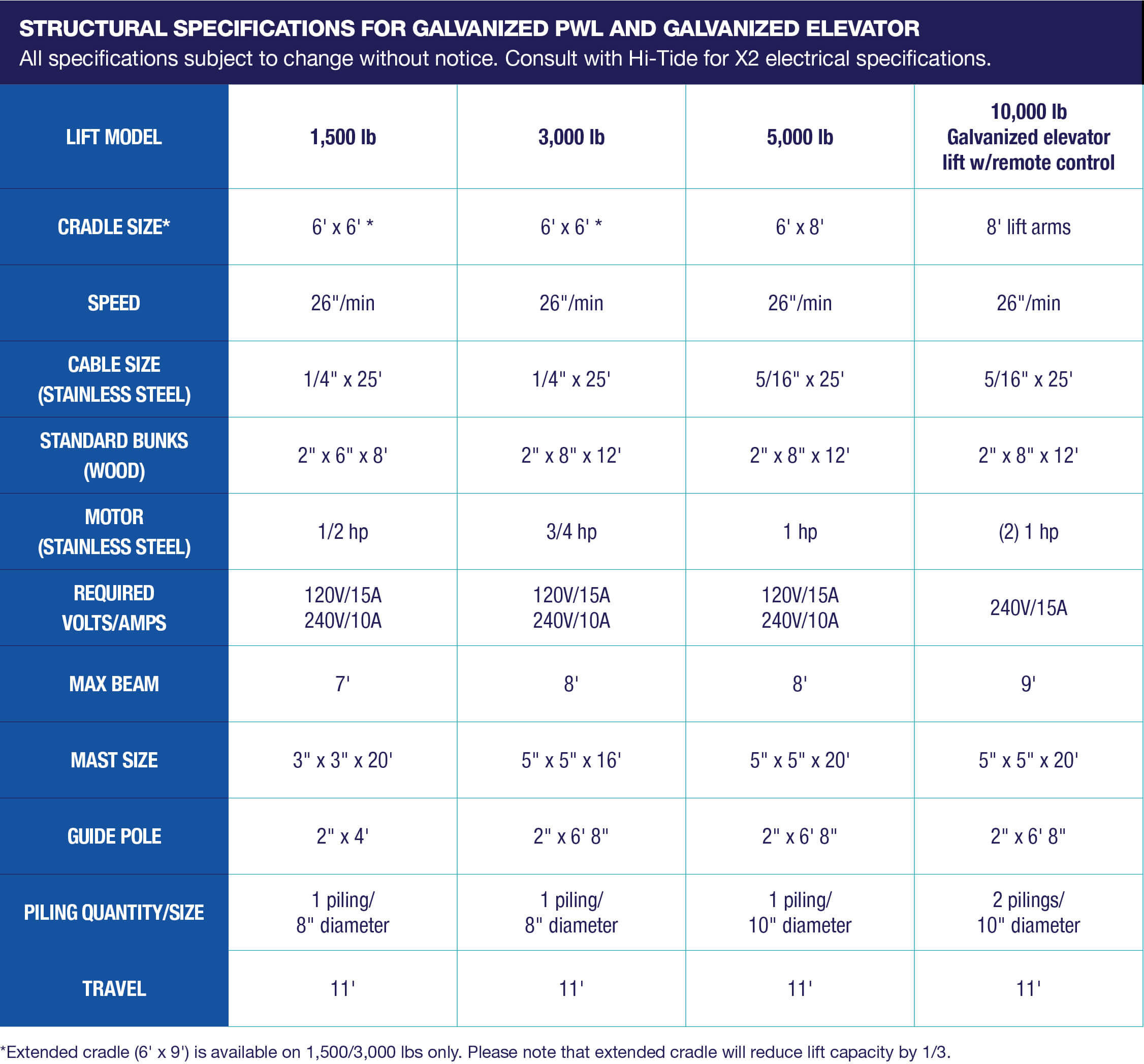

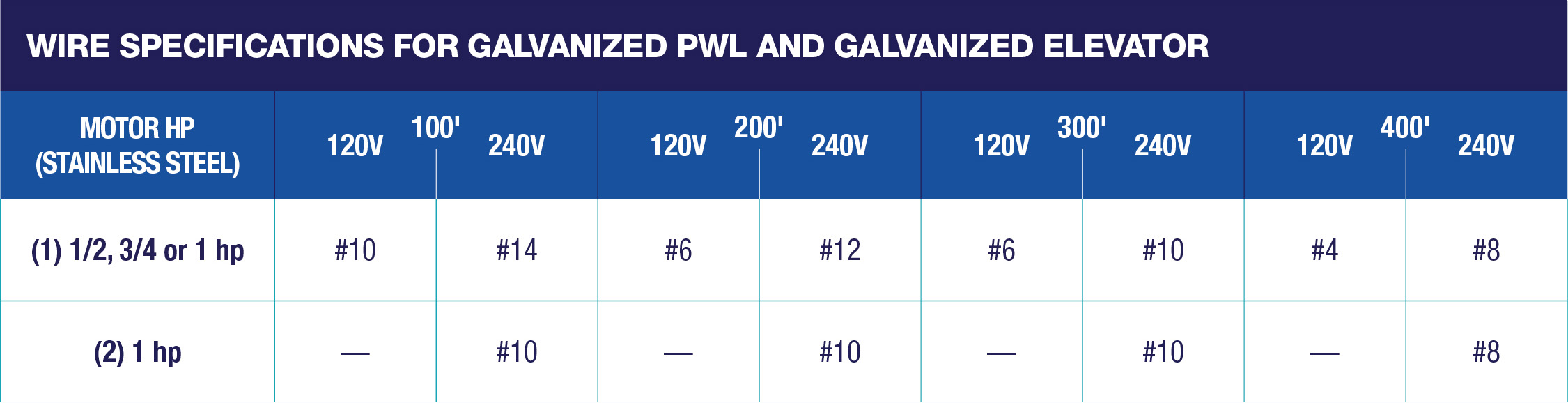

Structural & Wire Specifications

Specifications for Galvanized PWL and Galvanized Elevator

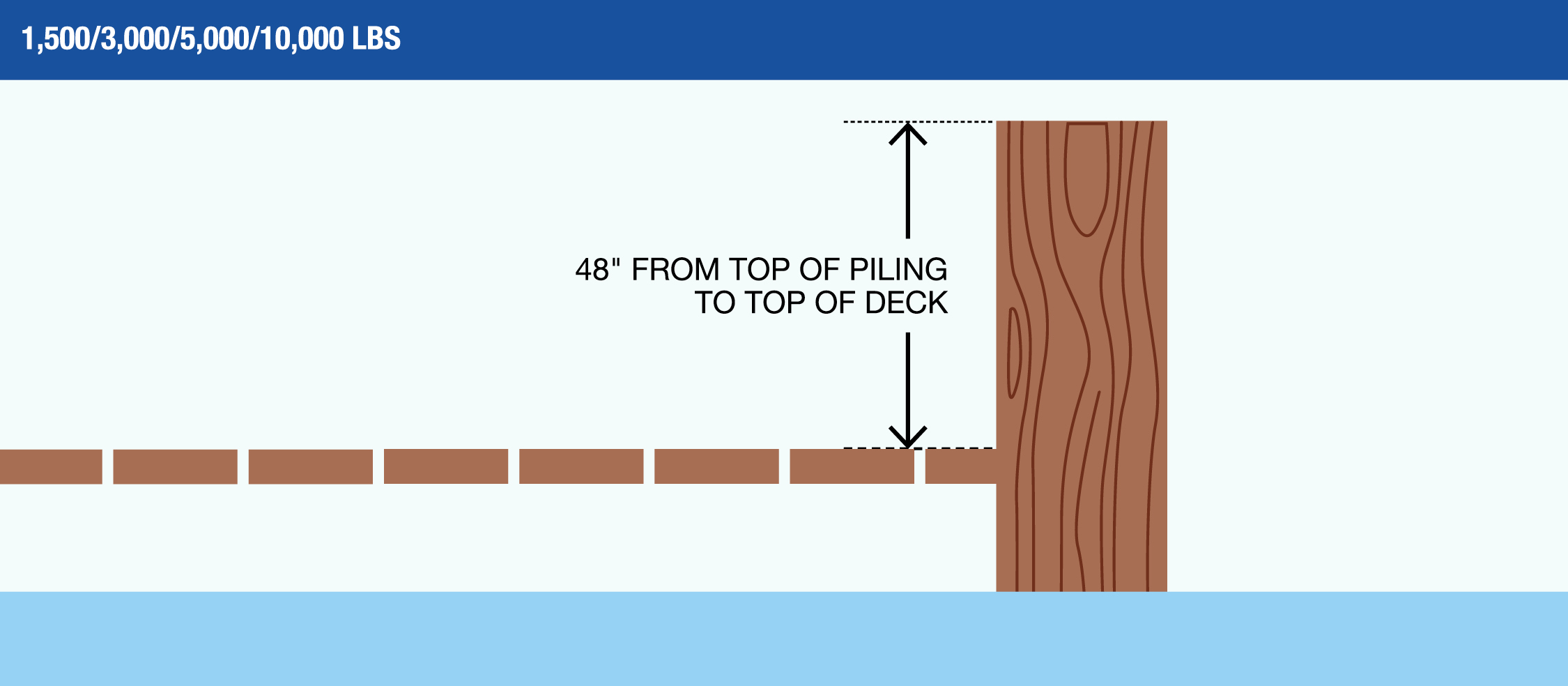

Recommended Piling Height for Galvanized PWL

Click below to view the specifications for Hi-Tide Galvanized PWL:

View Catalog
