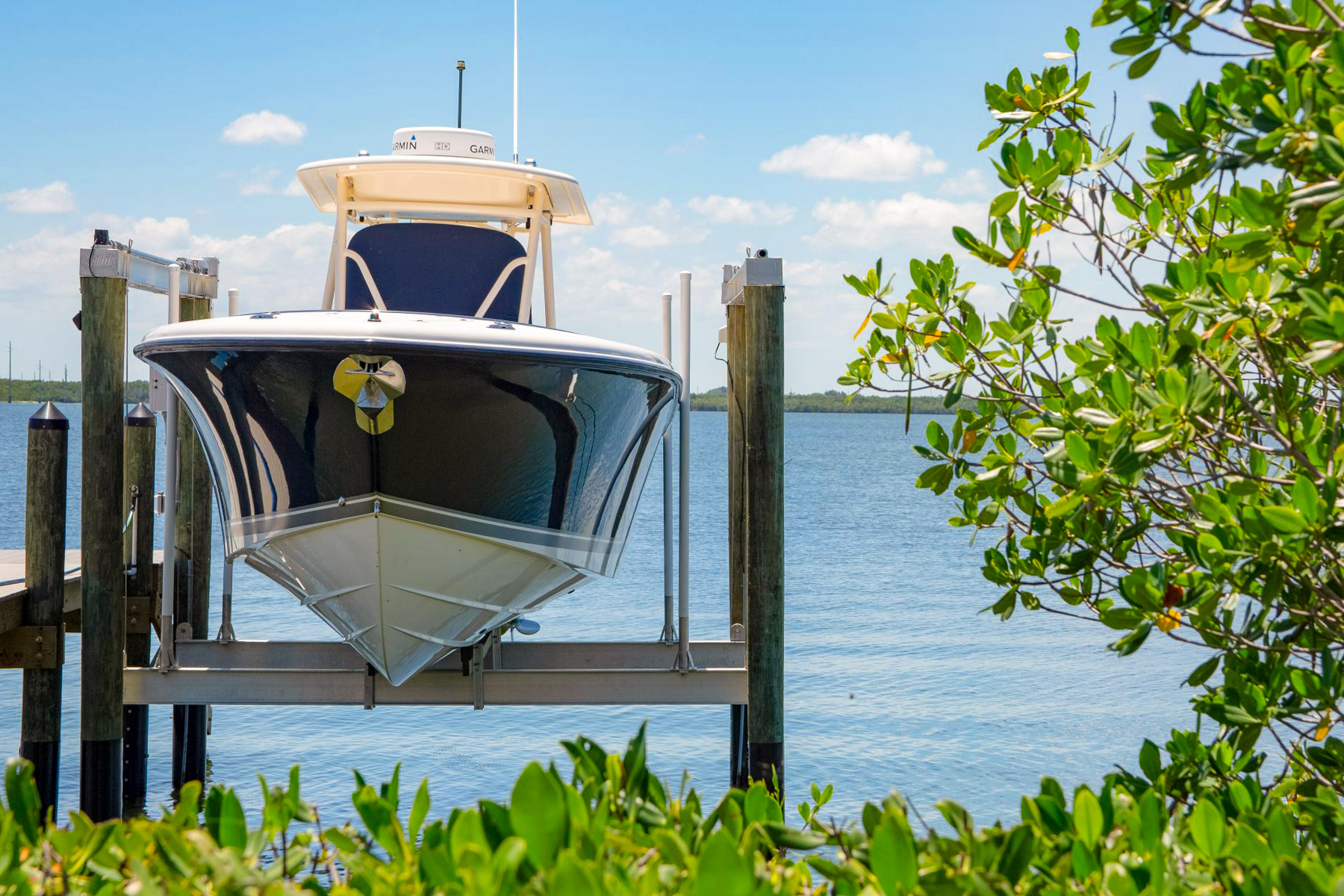

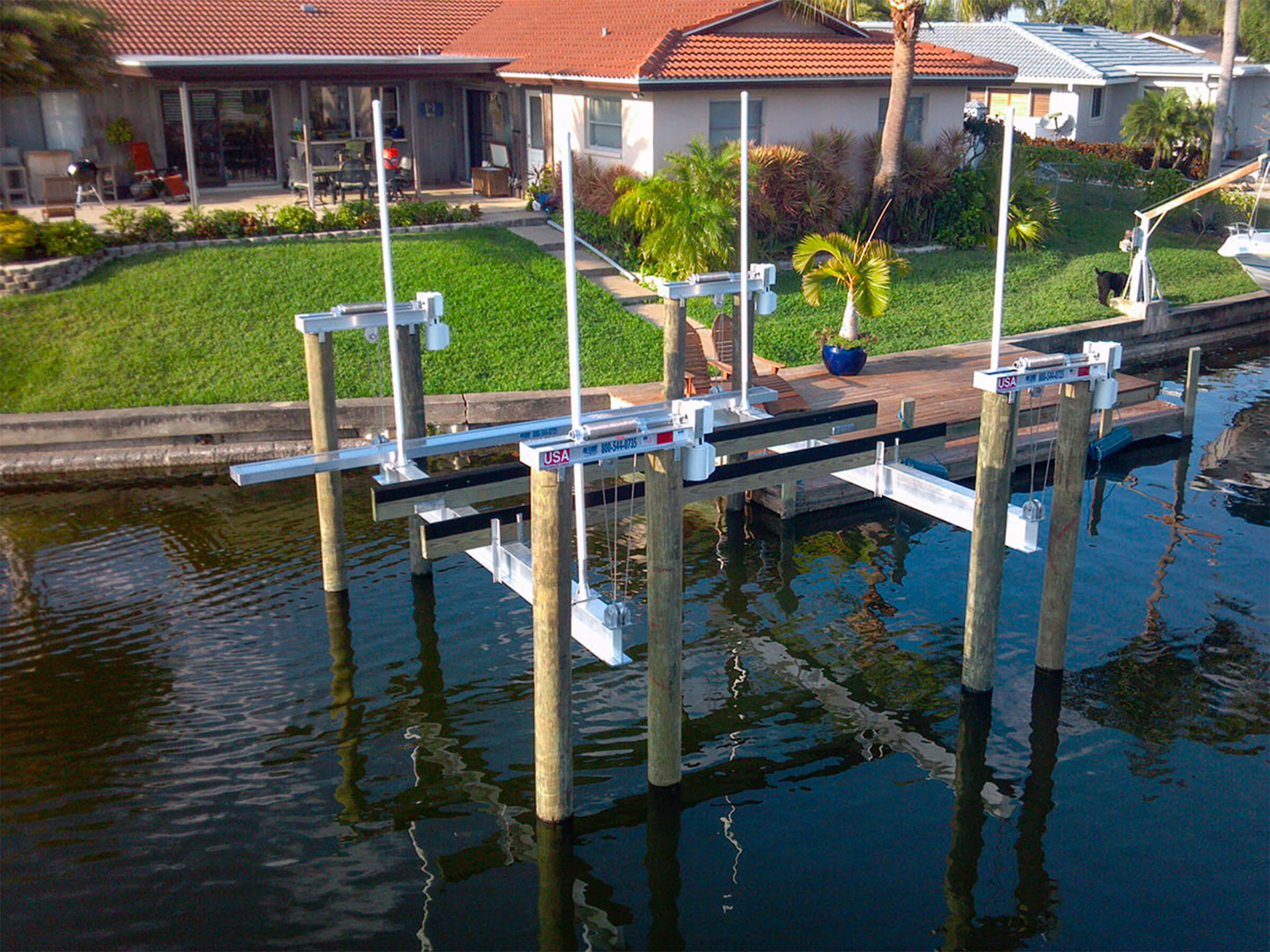

Gear Drive Lift

The original Hi-Tide design, the Gear Drive Lift boasts an all-aluminum structure, the longest-lasting metal for the marine environment.

View Specifications

Quick Links

Options & Accessories

Warranty

Structural & Wire Specifications

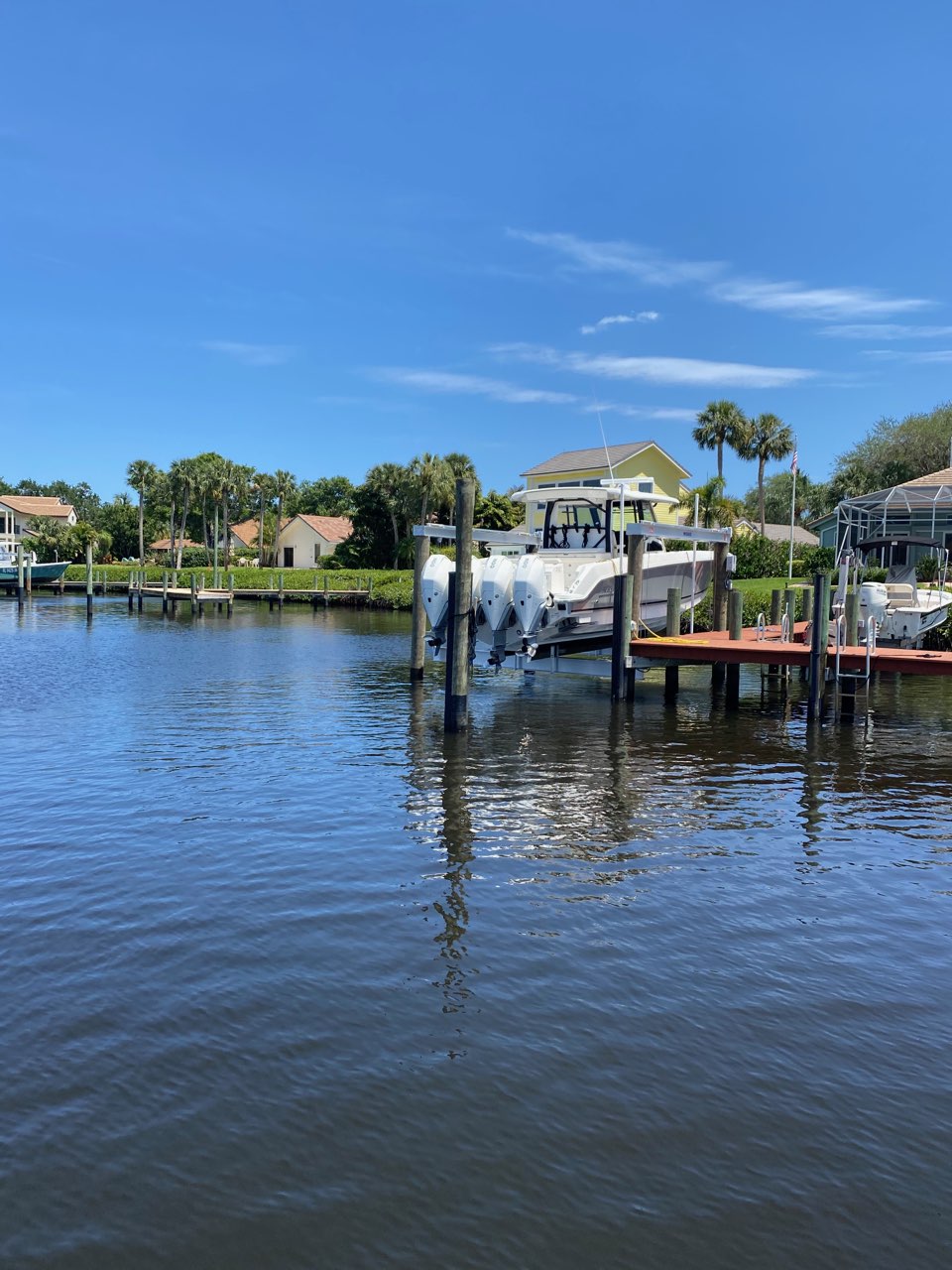

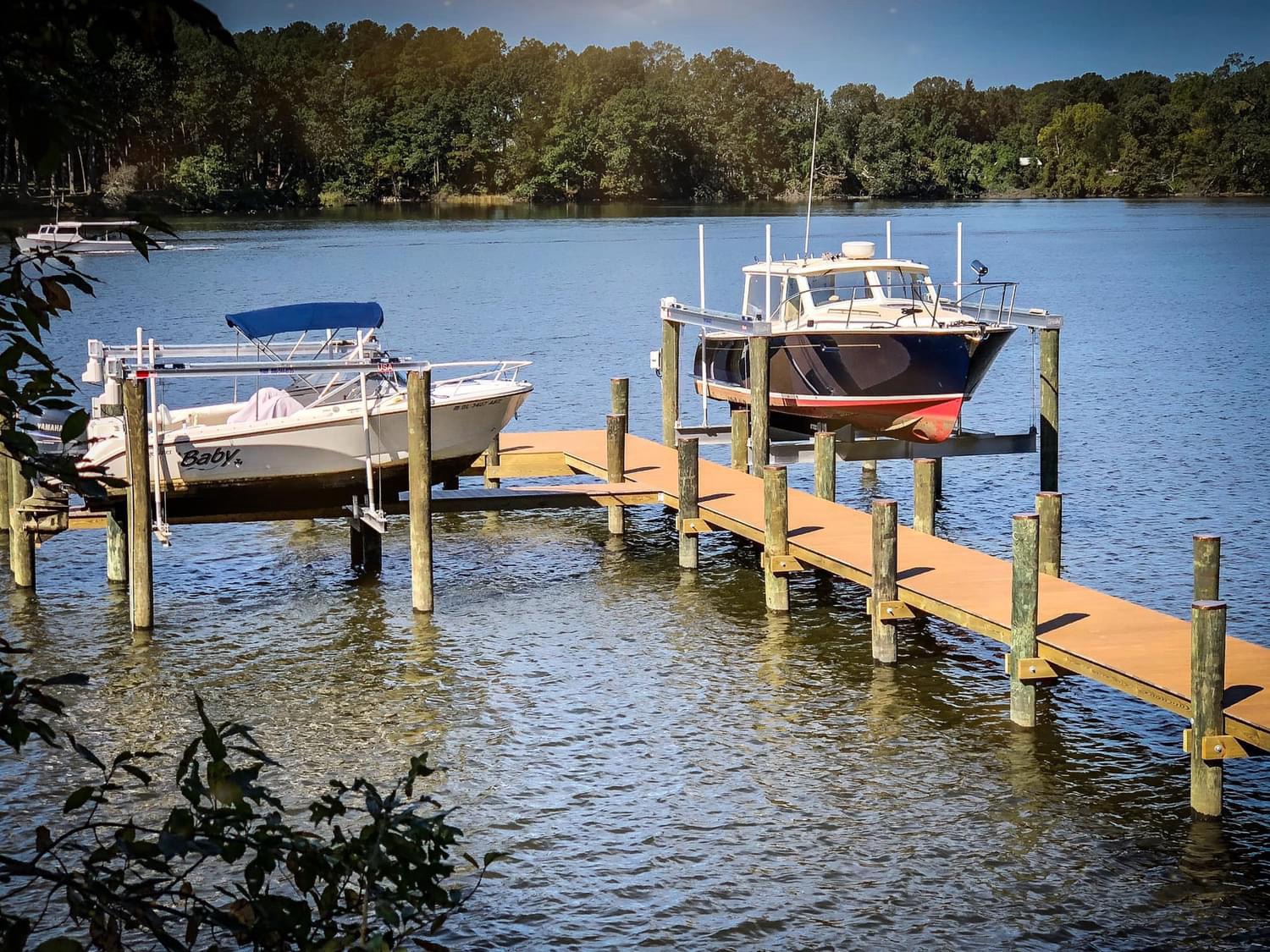

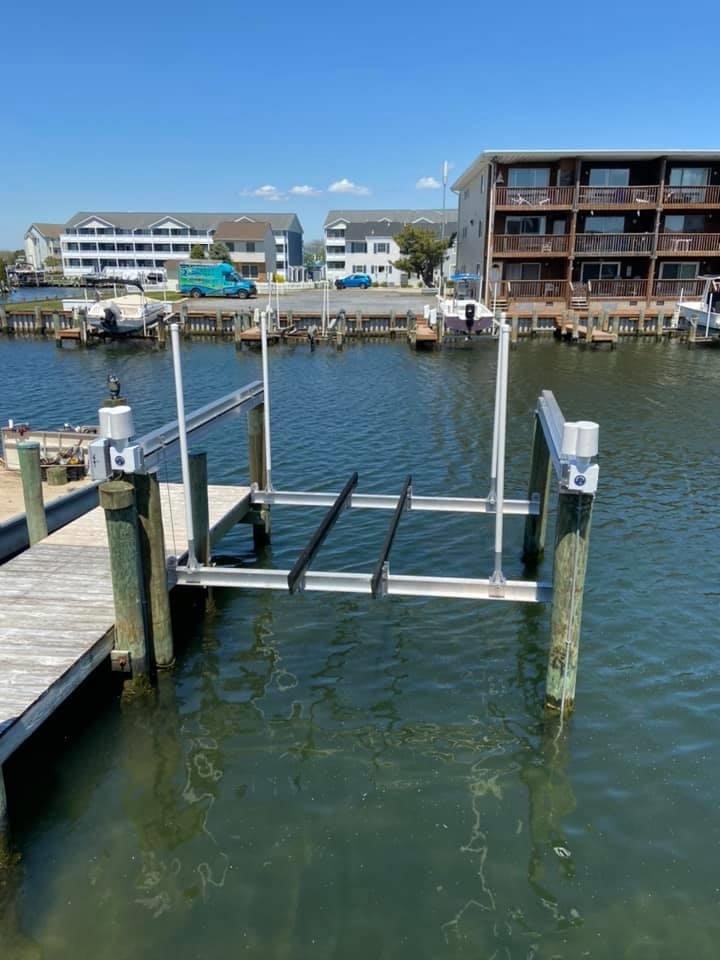

Gallery

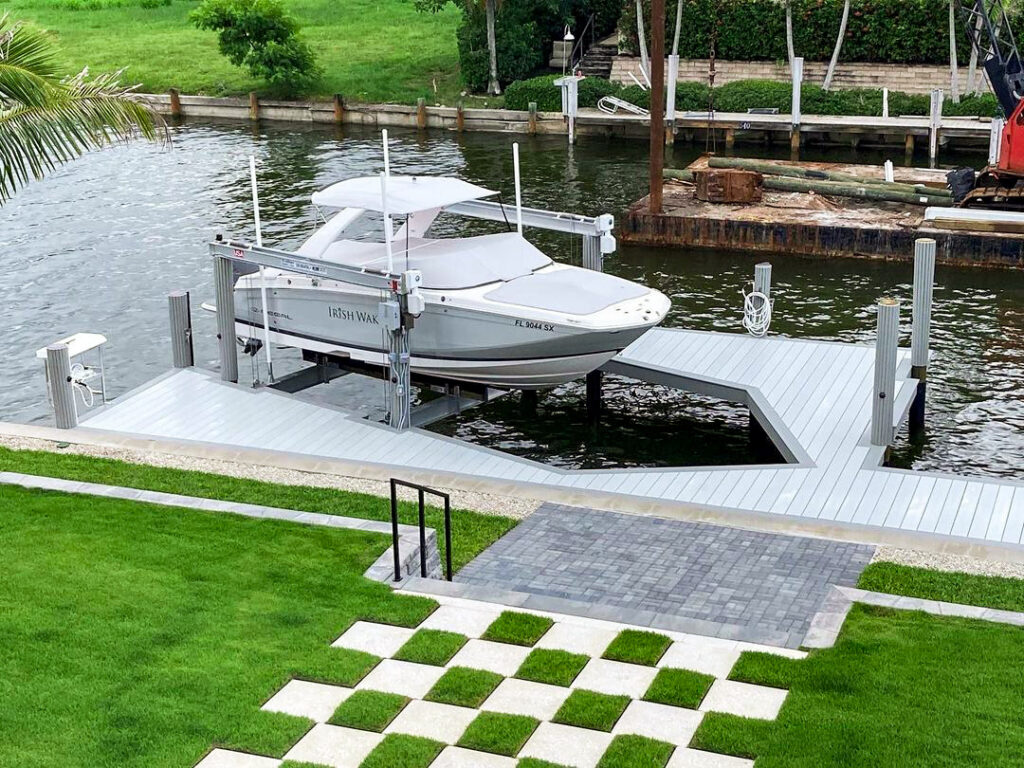

Standard Features

Patented, sealed aluminum Hi-Tide Gear Drive gear box provides efficient, quiet and fast performance
Remote control and aluminum bunks (up to 20,000 lbs)
All-aluminum structure using 6061- T6 marine-grade aluminum
Machined aluminum cable winders that extend cable and driveshaft life
Twin I-beam top carrier beams
Welded construction throughout
Aluminum pulleys with greaseable stainless steel axle bolts
Stainless steel electric motors – made in America
Stainless steel cables and hardware

Scroll

Specifications for Hi-Tide Gear Drive Lift, low and standard profile:

The Gear Drive models below include remote control and Aluminum Bunks up to 20,000 lbs.

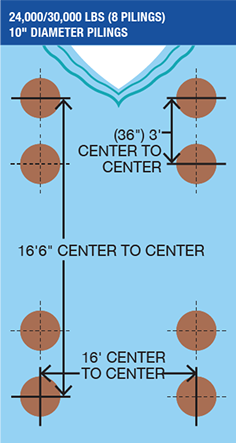

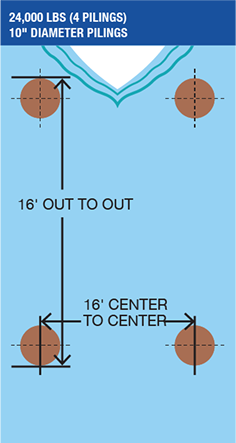

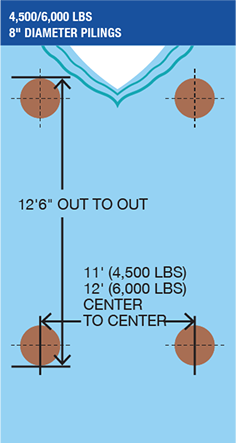

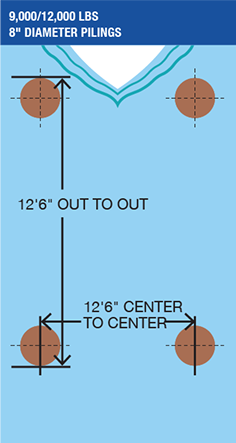

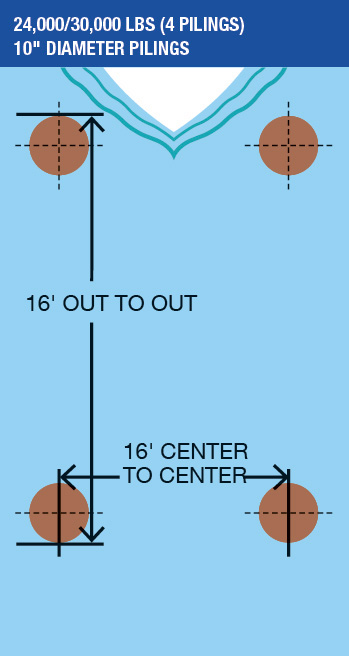

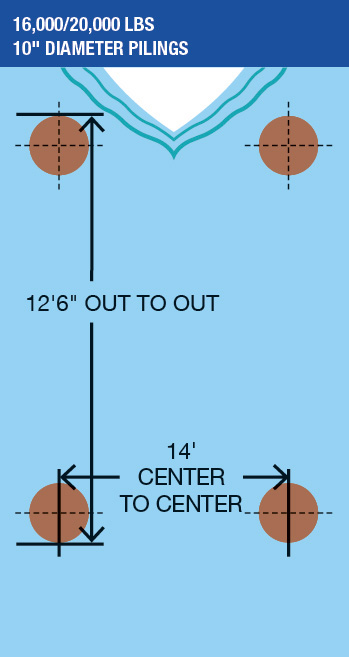

Piling Setting Dimensions for Gear Drive® Lift & X2 Gear Drive Lift, Low-Profile Only

Specification Notes:

Hi-Tide Gear Drive top carrier beams are designed to fit pilings up to 12″ in diameter. Please notify Hi-Tide if concrete pilings will be used.
Hi-Tide Gear Drive lifter beams are designed to lift on the centerline of the support pilings. If the dock edge overlaps centerline of the pilings, adjustment should be made to increase piling spacing side to side, shorten lifter beams, or notch deck boards to accommodate lifter beams.  Please contact Hi-Tide for help at 1-800-544-0735.

Click below to view the specifications for Hi-Tide Gear Drive Lift, low and standard profile:
