X2 Gear Drive Lift

The original Hi-Tide design with twice the speed, the X2 Gear Drive Lift boasts an all-aluminum structure, the longest-lasting metal for the marine environment.

View Specifications
Contact Us
Quick Links
Options & Accessories
Warranty
Structural & Wire Specifications
Gallery

Standard Features

  1. Patented, sealed aluminum Hi-Tide X2 Gear Drive gear box provides efficient, quiet and fast performance
  2. Aluminum bunks (up to 20,000 lbs)
  3. All-aluminum structure using 6061-T6 marine-grade aluminum
  4. Machined aluminum cable winders that extend cable and driveshaft life
  5. Twin I-beam top carrier beams
  6. Welded construction throughout
  7. Aluminum pulleys with greaseable stainless steel axle bolts
  8. Stainless steel electric motors – made in America
  9. Stainless steel cables and hardware
  10. Available only in low profile
  11. X2 includes remote control and limit switch
Scroll

Options & Accessories.

  • Aluminum catwalk
  • Aluminum catwalk steps
  • Aluminum service platform
  • Boarding platform
  • Boathouse brackets
  • Cradle stabilizers
  • Driveshaft covers
  • Flare guides
  • Marina brackets
  • Cable keepers
  • Additional options and accessories available

Warranty

  • 15  year  structural  warranty
  • 5  year  gear box  warranty
  • 2  year  motor  warranty
  • 1  year  comprehensive  warranty

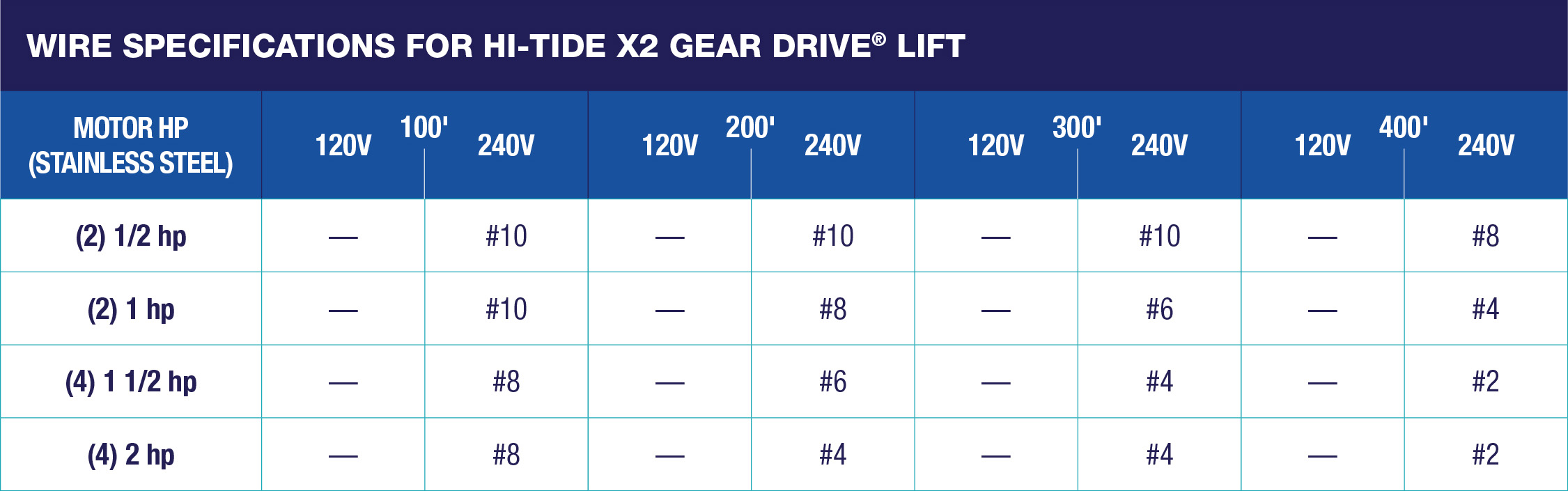

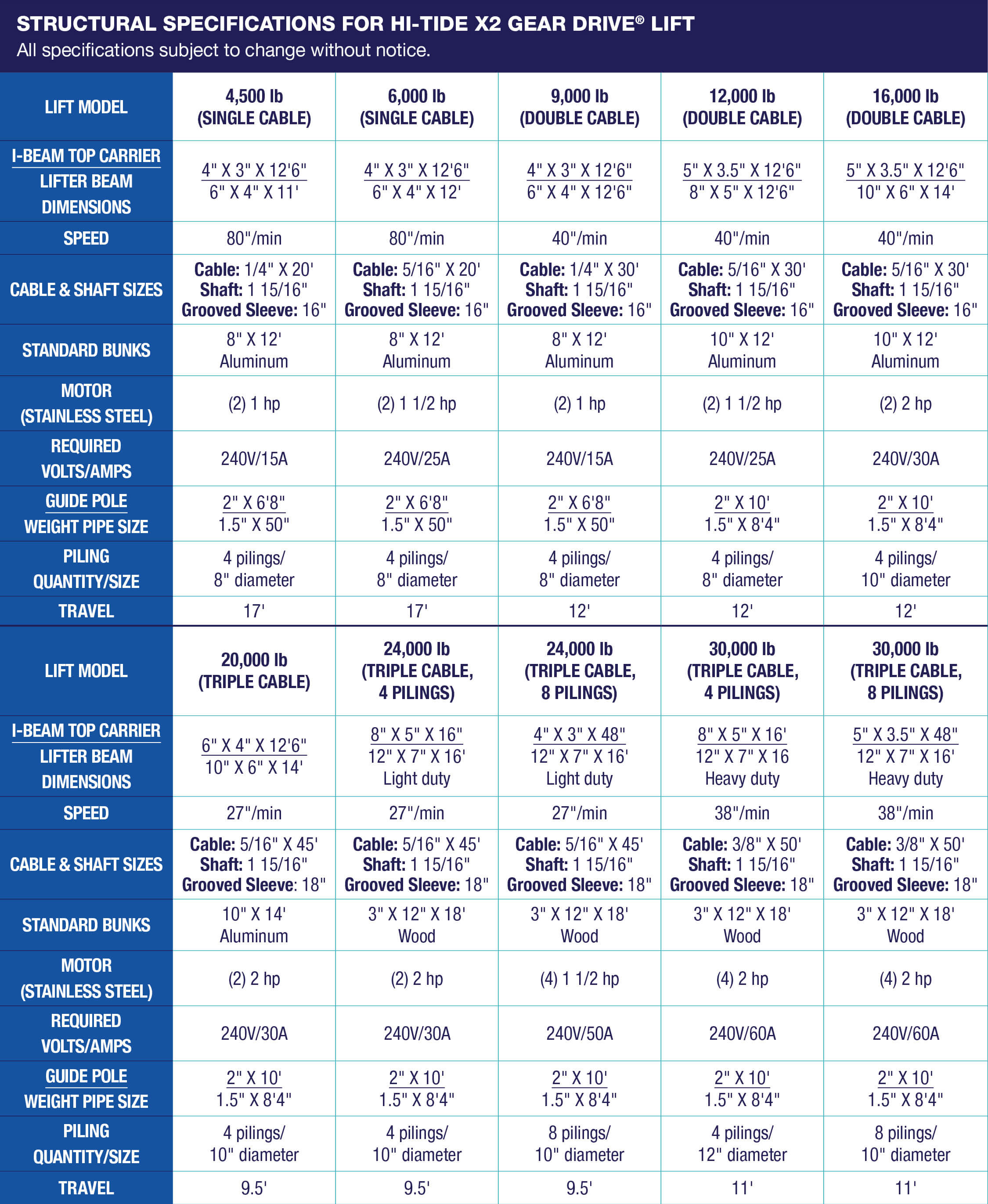

Structural & Wire Specifications

Specifications for Hi-Tide X2 Gear Drive Lift, low profile only:
The X2 models below include remote control, limit switch, and Aluminum Bunks up to 20,000 lbs.

Click below to view the specifications for Hi-Tide X2 Gear Drive Lift, low profile only:

View Catalog

Browse The Gallery
