Big boat? No problem! Hi-Tide Yacht Lifts can hold boats from 30,000 lbs to 180,000 lbs! Need a special size or configuration? Call us and let us customize a lift for you!

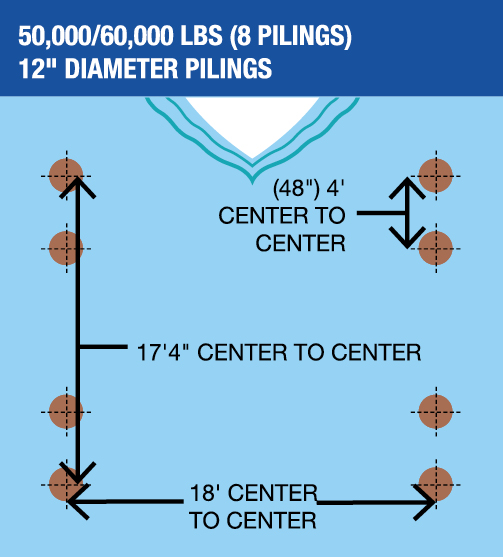

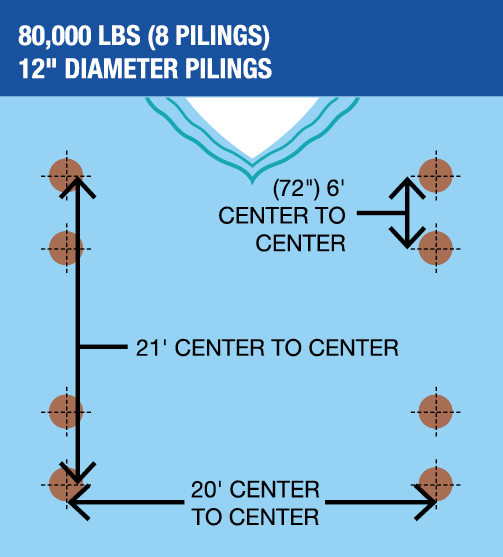

Side to side spacing may differ from diagrams depending on beam of yacht, check with Hi-Tide Sales to see if the standard dimensions are appropriate.

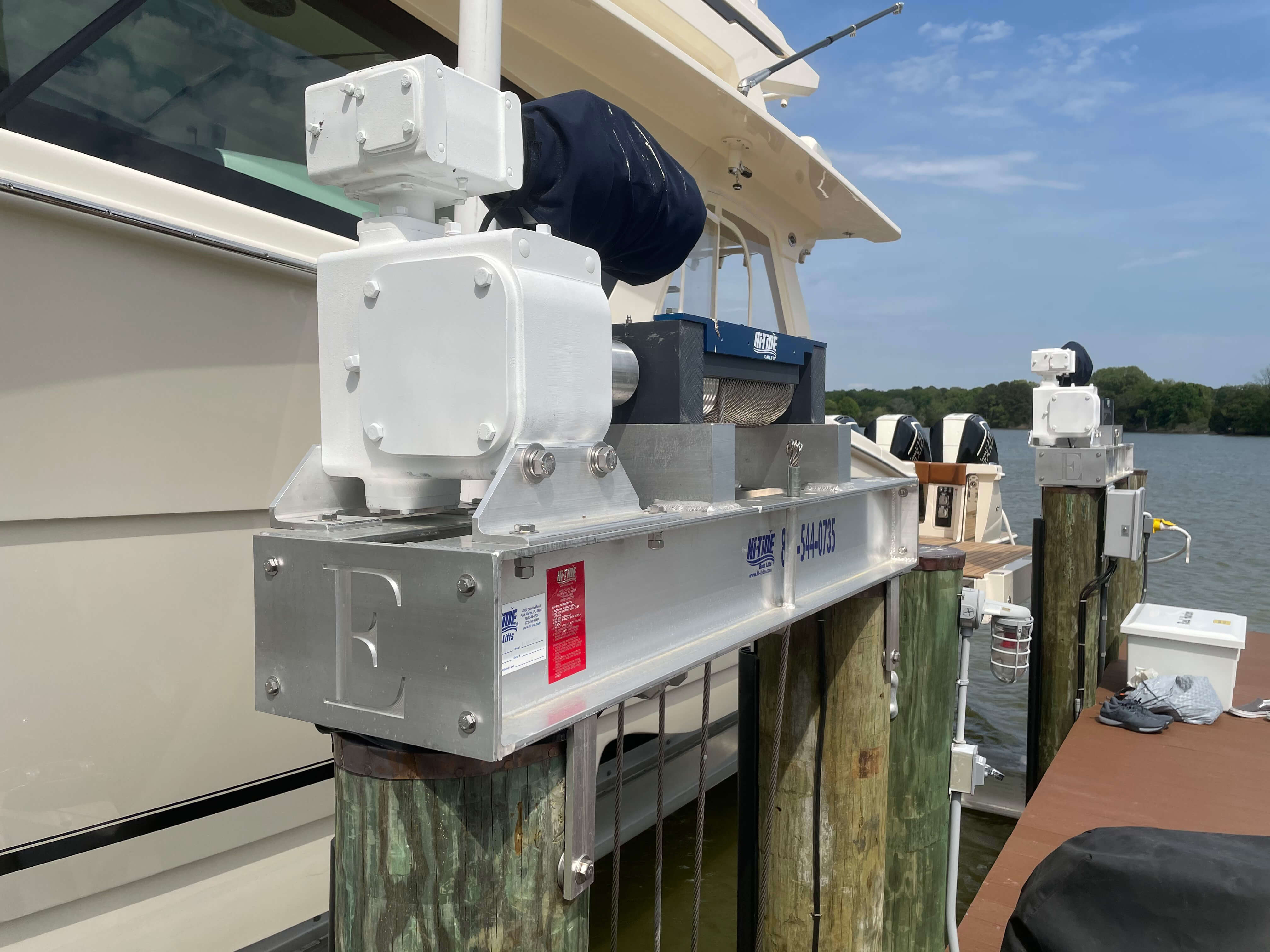

Yacht Lift top carrier beams are designed to fit pilings up to (2) inches larger than specified. Concrete pilings or (4) inch larger pilings require lift customization and must be specified with order.
Lifter beams are designed to lift on centerline of support pilings if dock edge overlaps centerline of piling; adjustment should be made to increase piling spacing side-to-side, or notch deck boards to accommodate lifter beam. Check with Hi-Tide Sales as needed.

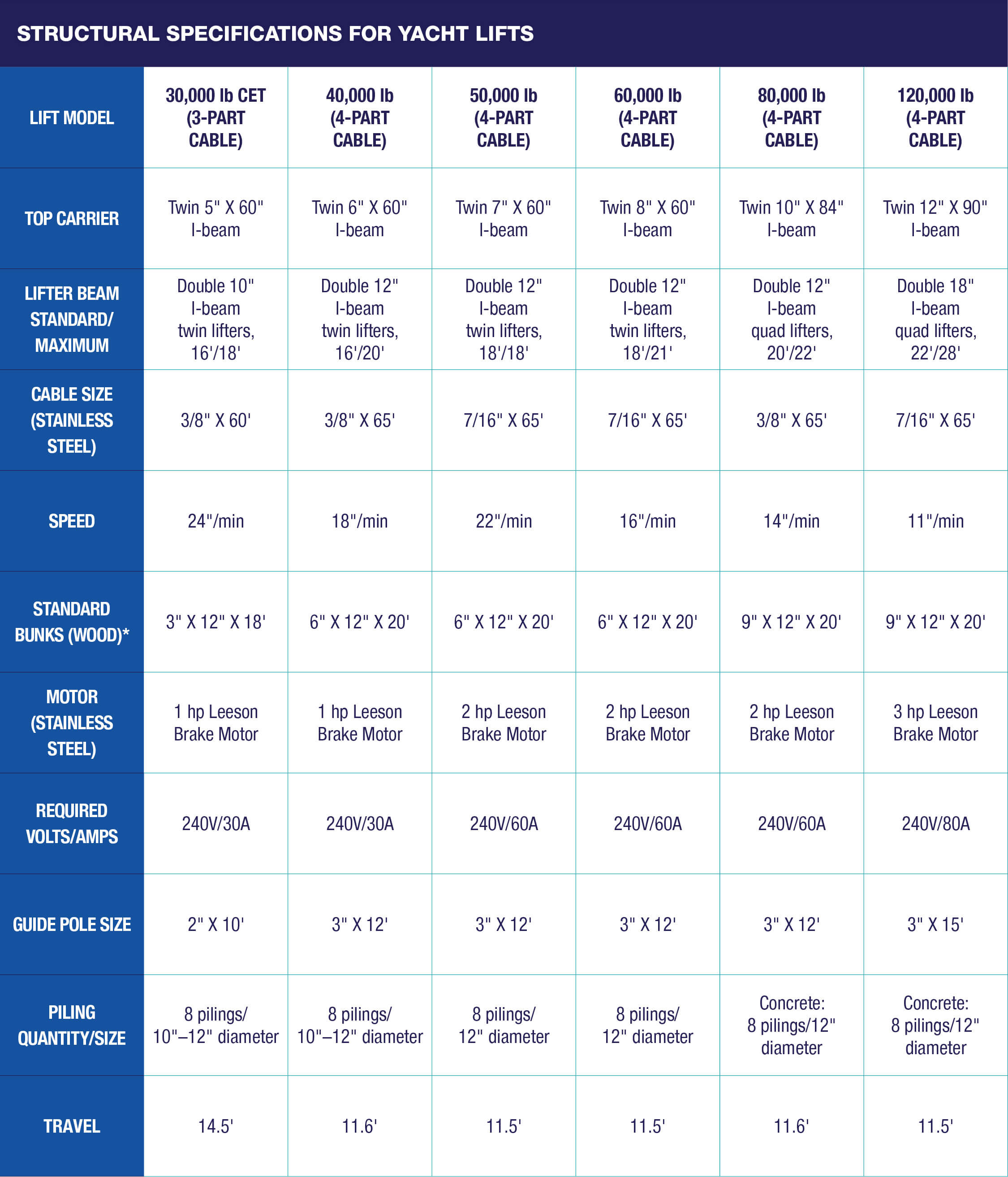

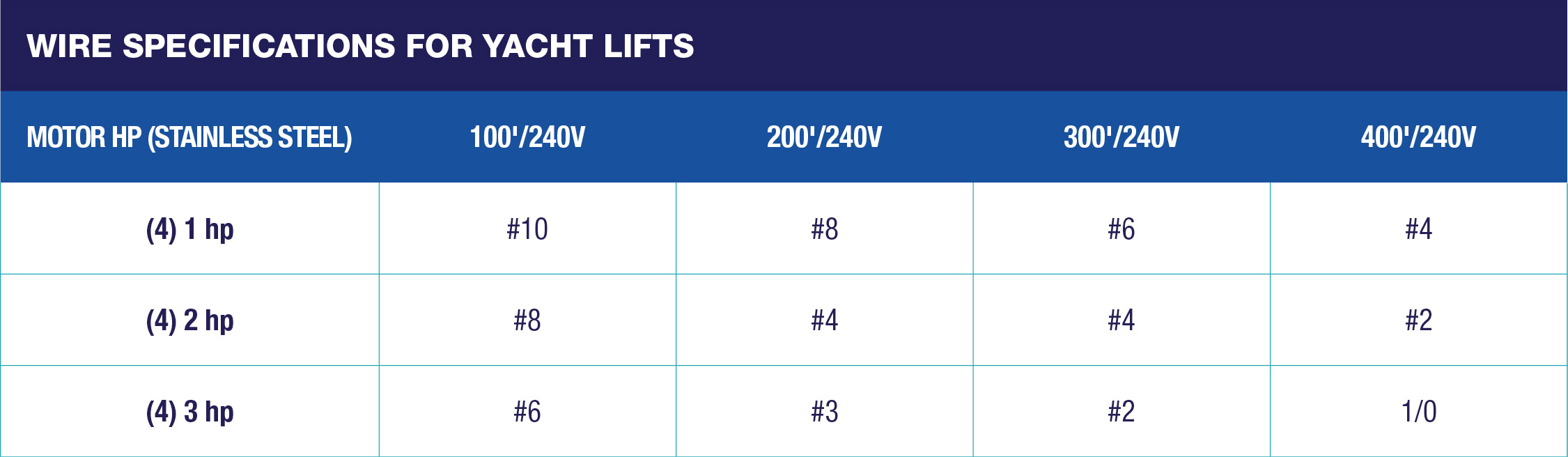

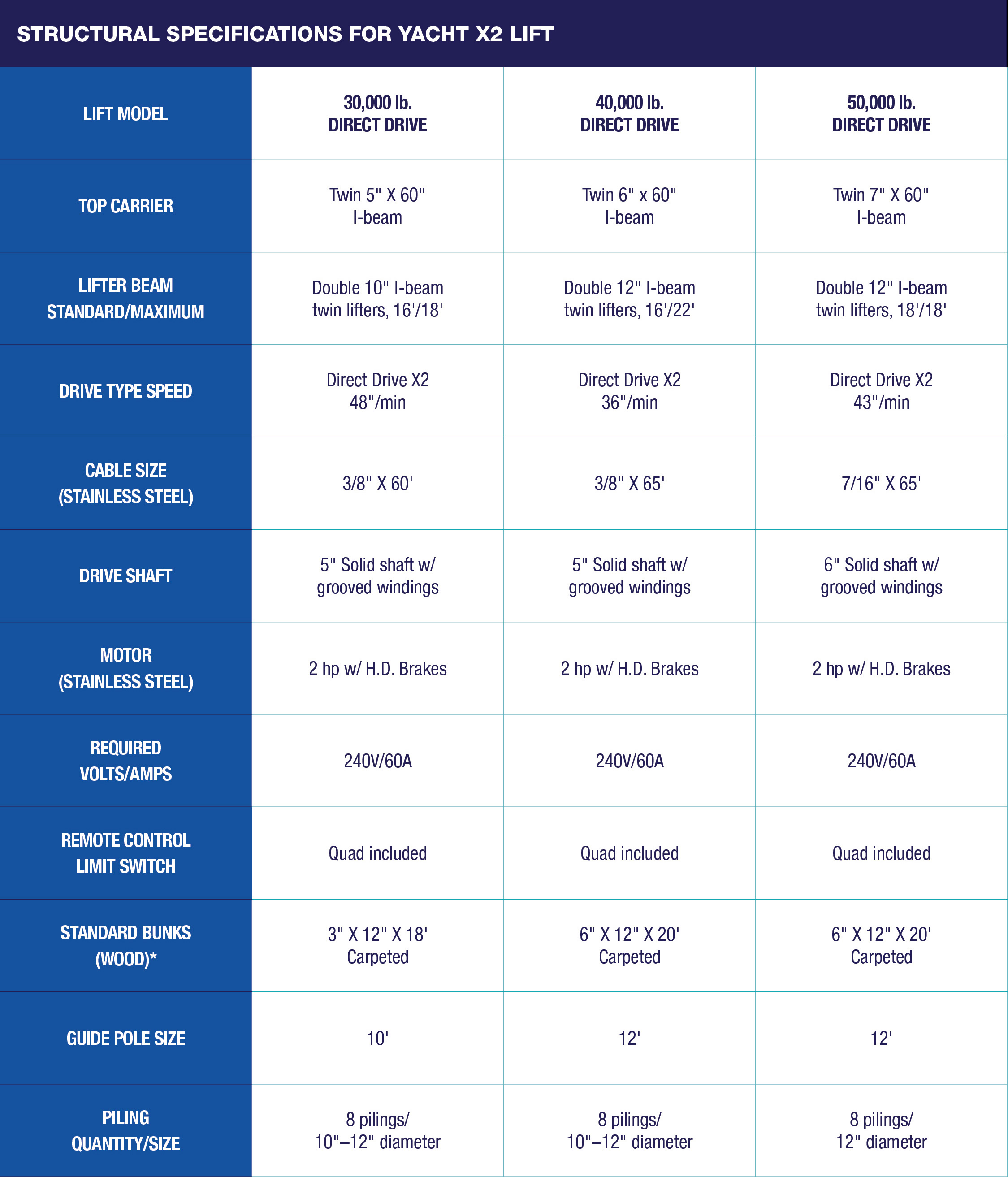

Click below to view the specifications for Hi-Tide Yacht Lifts:
